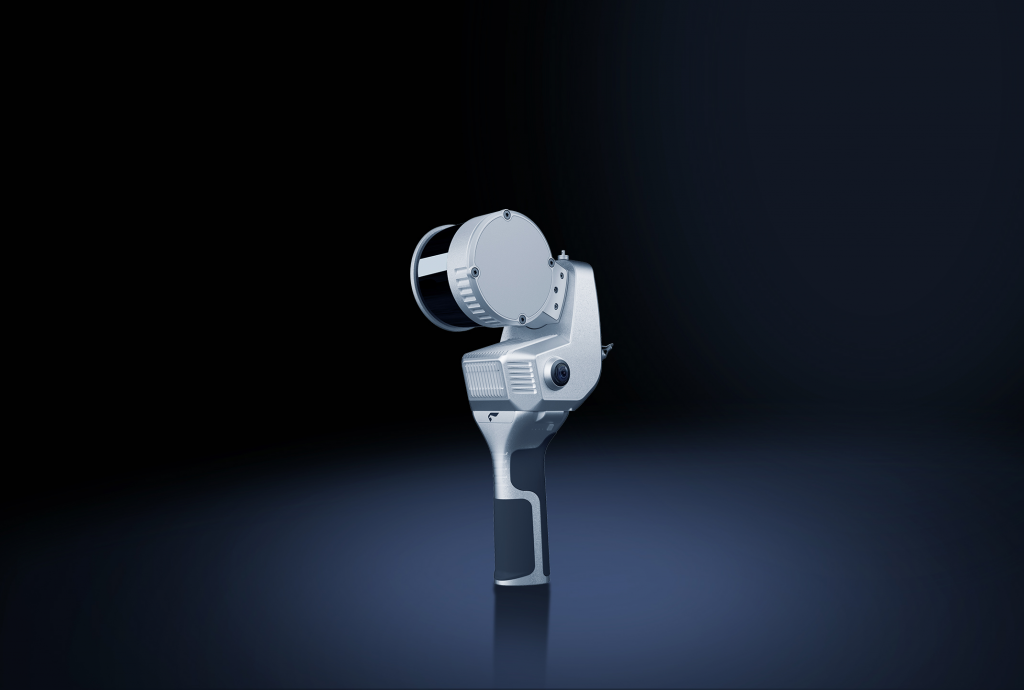

SLAM200 is the third generation high-precision handheld laser scanner developed by Feima Robotics. The device features a panoramic camera, a higher-performance laser sensor, built-in GNSS module and a more powerful processing unit, offering higher precision, finer details, and more convenient functions. The superior functions of the previous two generation products have been integrated into SLAM to create a more efficient and convenient measurement tool.
Brand new design

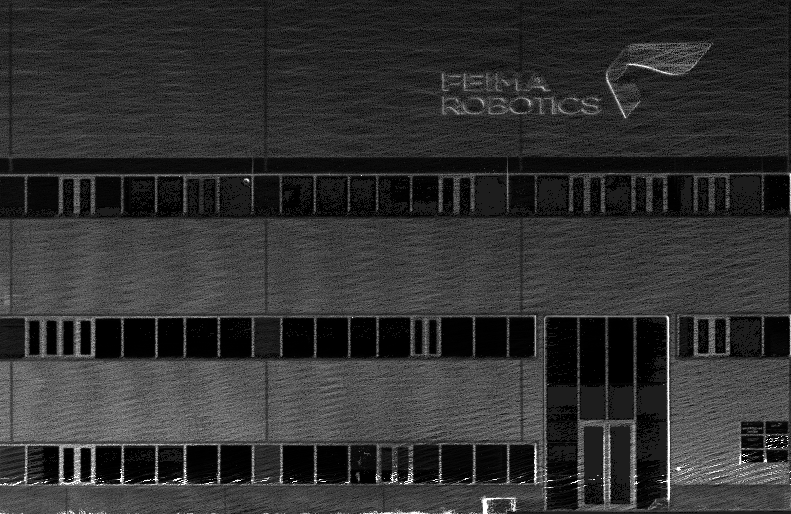

High precision, high fineness
SLAM200 uses a high-performance laser sensor with 640kpts/s laser pulse repetition rate and smaller laser spot. Combined with expert-level SLAM algorithm, it can achieve high-precision, high-density and high-fineness point clouds.
Built-in GNSS module
It has a built-in GNSS module and can connect to the CORS system via a mobile phone, providing absolute position of the data. (External GNSS antenna required).
Longer measurement range
A longer measurement range allows SLAM200 to take into account both ground mobile measurement and airborne data acquisition.
Real-time mapping
Real-time SLAM can full fit real-time mapping, real-time coloring, real-time orientation by RTK data.
Panoramic camera
Dual 12MP fisheye cameras can generate panoramas, color point clouds, and for visual SLAM mapping.
Multi-platform mounting
SLAM200 supports multi-platform operation, including handheld, backpack, vehicle-mounted, and drone.

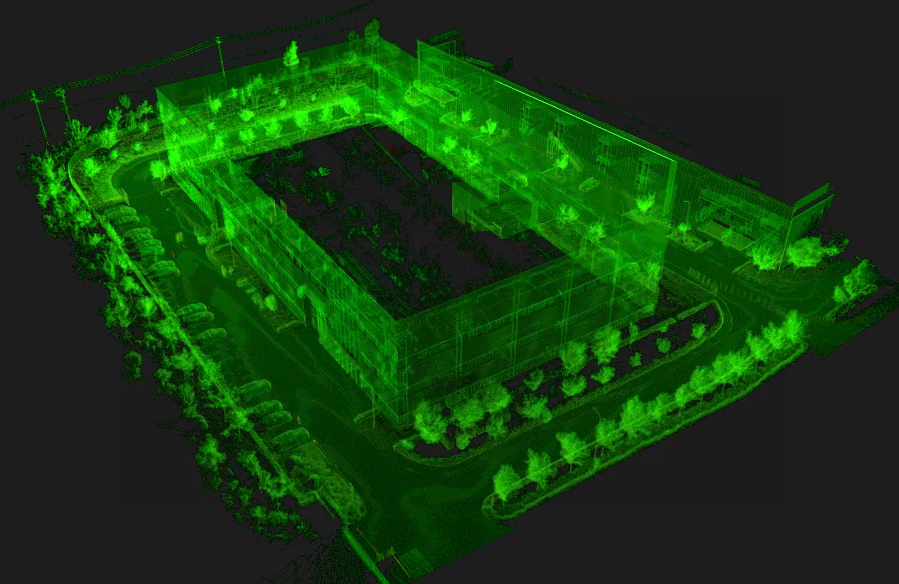

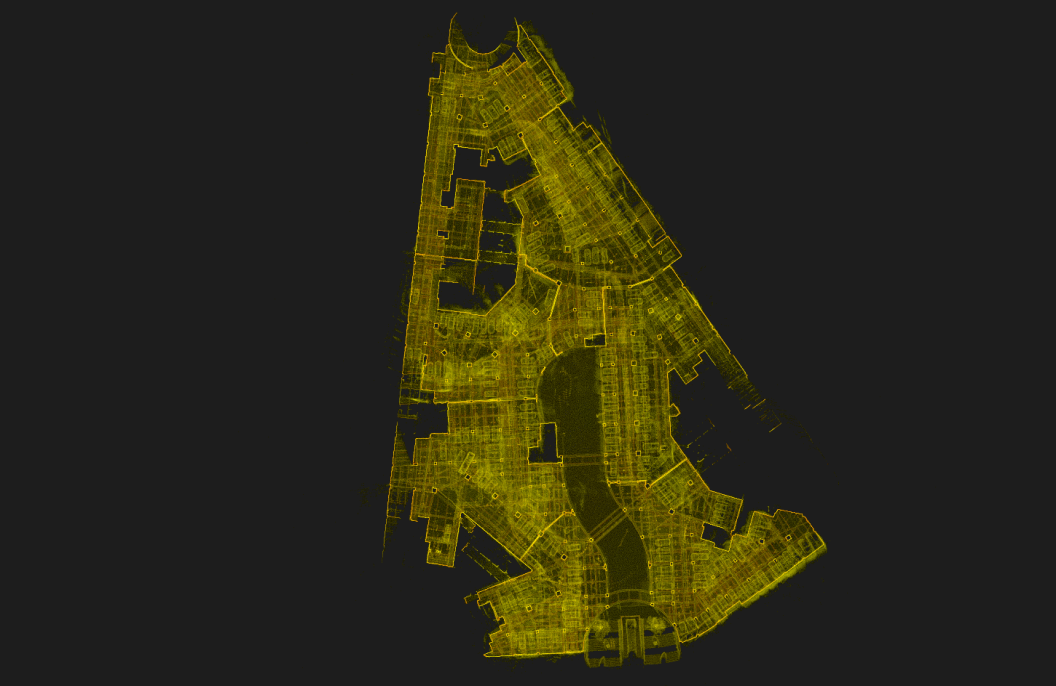

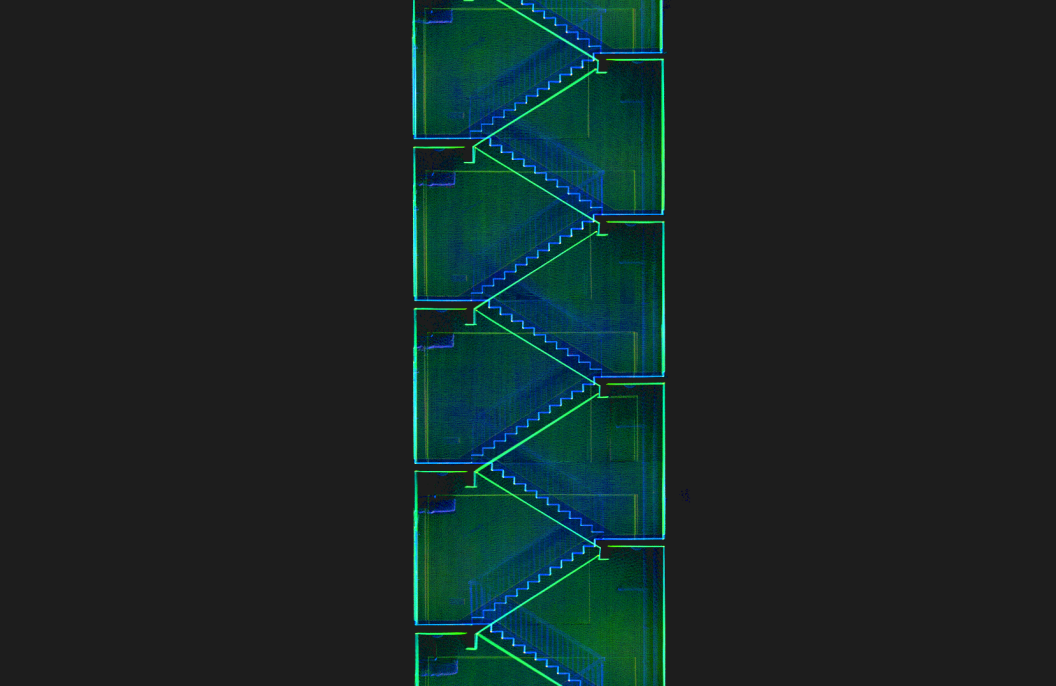

Applications
SLAM GO APP
Wirelessly connect to SLAM200, display scan data in real time, and perform 2D, 3D, and slice display; synchronize historical project information with the cloud through the mobile app; preview images from the cameras.
SLAM GO POST PRO
As a PC software that is compatible with SLAM200, it is embedded in the professional version of the drone management system. This software can perform post-processing of data collected by SLAM200, generate high-precision and high-resolution color point clouds, produce partial panoramic images, and enable point cloud browsing and optimization.
